REI-277XU Ruggedized Video Time Inserter

REI-277XU

REI-277XU Ruggedized Video Time Inserter

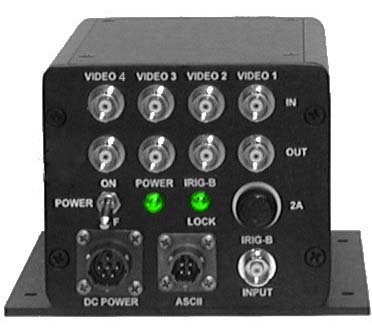

The REI-277XU is a 1-5 channel IRIG-B video character inserter designed for airborne applications. The unit is housed in a rugged metal enclosure measuring 4.0" W x 3.1" H x 6.0" D. The unit receives IRIG-B Time Code via the front mounted BNC connector. Two BNC video loops (input/output pair) are provided. Each video loop will insert the IRIG Time upon an independent video signal. +28 VDC is received via an ITT Cannon KPT02E10-98P connector. The REI-277XU generates translucent white digits in 7-seg-ment format. Horizontal & vertical size, position & character brightness are adjustable by means of five potentiometer controls, accessible inside the left side panel. Character height may be varied from 2% to 20% of picture height.

Features:
  • • 1-5 independent Video Channels: (REI-2771U=1 Channel) (REI-2772U=2 Channels) (REI-2773U=3 Channels) (REI-2774U=4 Channels) (REI-2775U=5 Channels)
  • • Translucent White Character-Variable Size and Location
  • • Rugged design for airborne and ground mobile use
  • • 28VDC Power
  • • GPS model available w/ GPS Receiver built-in

CLICK TO DOWNLOAD SPEC SHEET
