REI-2910 Ruggedized GPS to IRIG-B Time Code Generator

REI-2910_2

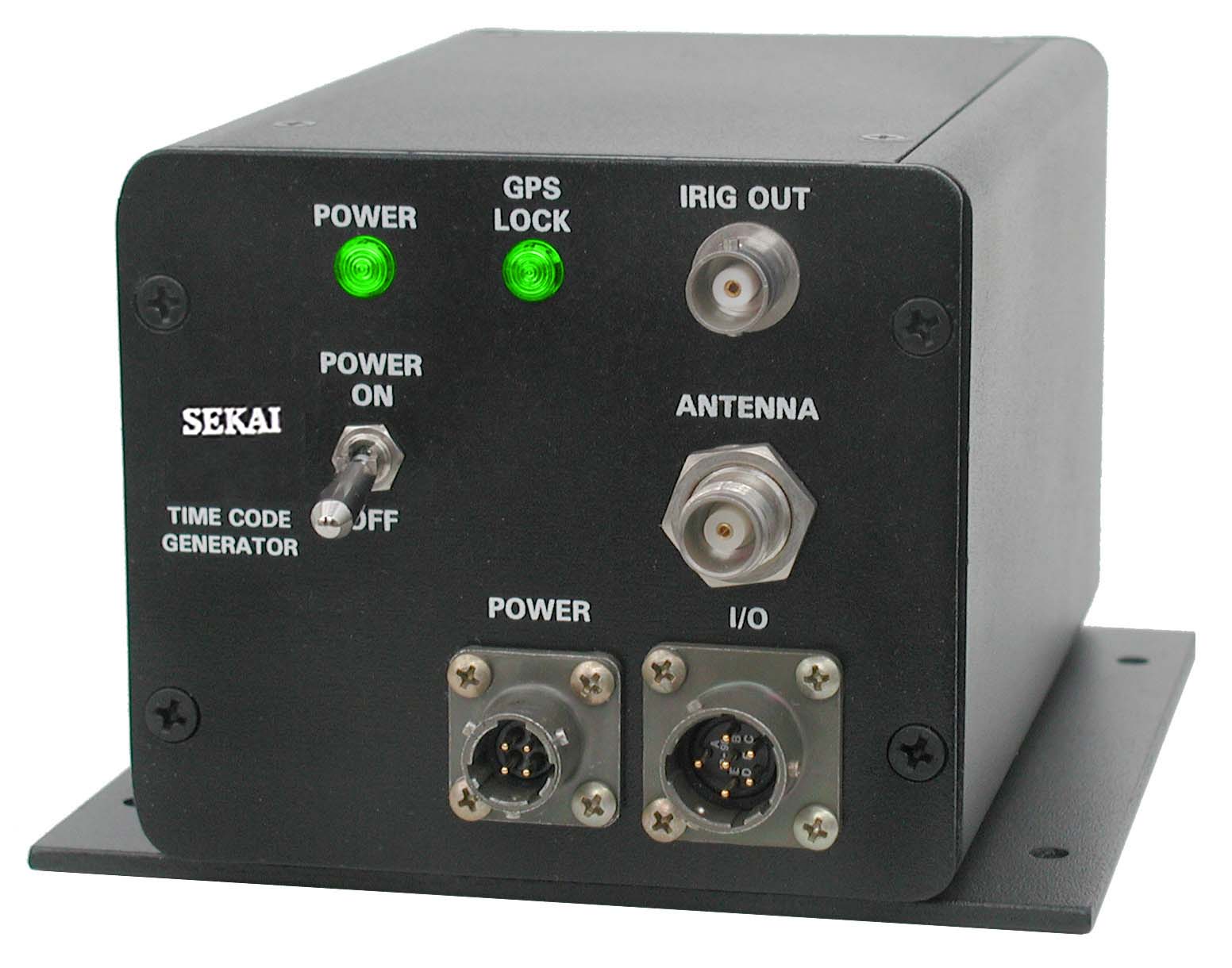

REI-2910 Ruggedized GPS to IRIG-B Time Code Generator

The REI-2910 is a very accurate GPS time code generator. The unit receives time and date information from Global Positioning Satellites and outputs IRIG-B and ASCII (RS-232C) time codes. Two (2) one pulse per second outputs and a GPS "lock" output are also standard features. An eight-channel receiver is employed that is capable of tracking up to eight satellites simultaneously, although reception of only one is required for time data to be output. Several configuration options are available.

Features:
  • • IRIG-B & ASCII (RS-232C) outputs
  • • Dual 1 PPS output (20% to 50% duty)
  • • GPS "Lock" indicator
  • • Automatic daylight savings time correction
  • • Time zone offset
  • • Rugged aluminum enclosure
  • • Indoor / outdoor antenna with 18' cable

CLICK TO DOWNLOAD SPEC SHEET

Accessories
